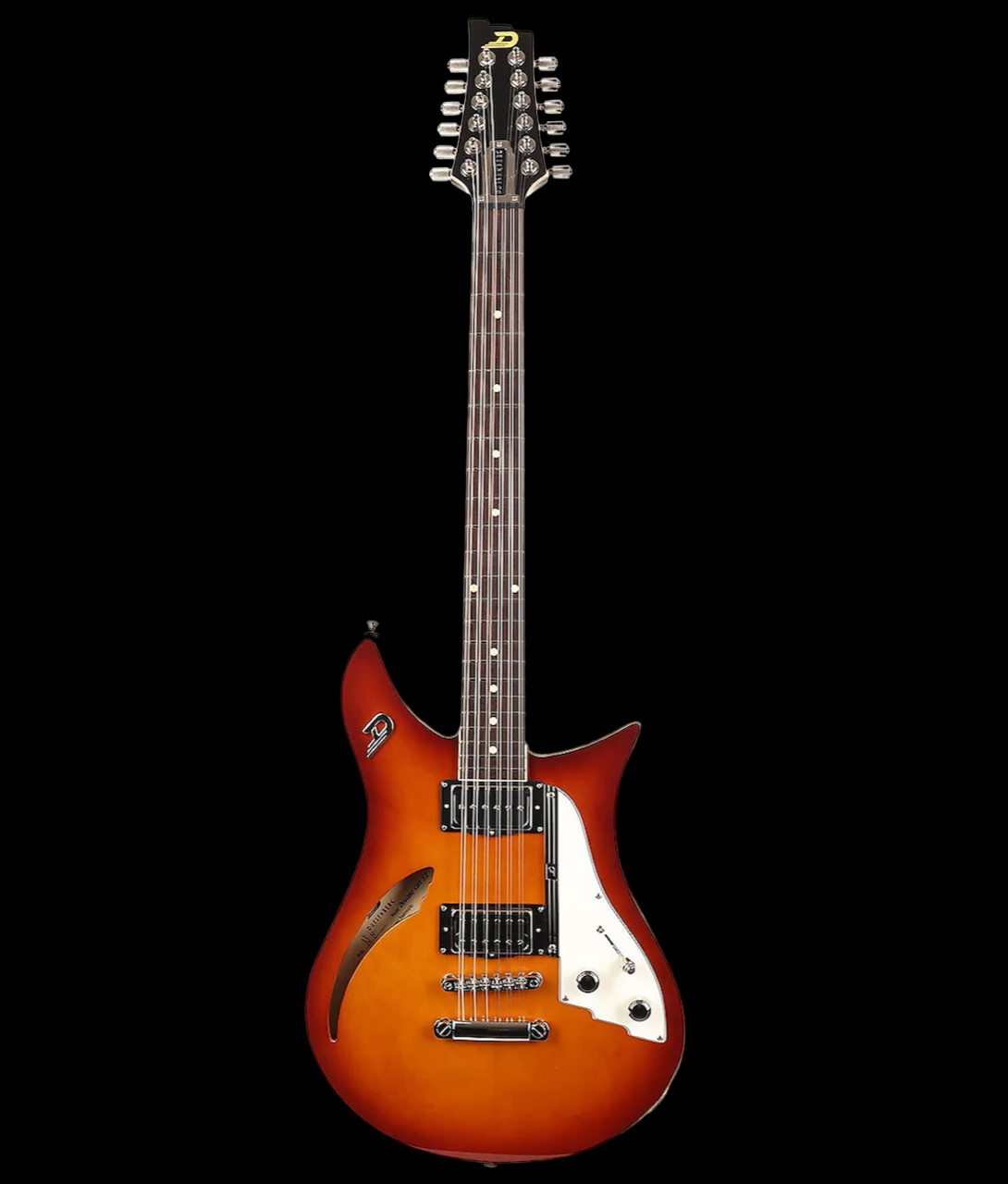

Duesenberg Double Cat 12 String Vintage Burst Electric Guitar

UNIQUE LOOKS, UNIQUE TONE

THE DOUBLE CAT SOUNDS LIKE NOTHING ELSE.

The Double Cat is made from solid alder featuring large sound chambers. The body is fitted with a flat maple top featuring a Cat Eye styled F-Hole. This distinct construction of a solid but chambered alder body combined with a flat top and a one piece maple neck gives the Double Cat the special tone which musicians all around the world came to love.

The Double Cat is equipped with our proven pickup combination comprising of the classically wound GrandVintage humbucker for the bridge and the smooth and creamy Domino P90 singlecoil for the neck. The middle position of both pickups features our special wiring, which splits certain low end frequencies out of the humbucker signal. This creates an open and extremely versatile addition to your pallet of sounds.

CHAMBERED BODY

A solid body that features big sound chambers for enhanced tone and weight reduction. Particularly characteristic tone somewhere between a solid and semi-hollow construction

6-STRING / 12-STRING

The Double Cat comes in either 6- or 12-String configuration.
Both come in a stunning Catalina Blue finish and our famous pickup combination. The 6-String version additionally comes in black.

PLEK PROCESSED

A pleked fretboard guarantees perfectly level frets. This is the basis for our fret polishing and setup work all done by hand that eventually makes our instruments play like nothing you have ever played before

SPECIFICATIONS

Neck

• Type: Set Neck, 1-piece Maple
• Width (6-string): 42.5 mm / 1.67" (nut), 52 mm / 2.05" (12th fret)
• Width (12-string): 45 mm / 1.77" (nut), 54 mm / 2.13" (12th fret)
• Thickness (6-string): 21 mm / 0.8" (1st fret), 24 mm / 0.95" (12th fret)
• Thickness (12-string): 22 mm / 0.87" (1st fret), 24.5 mm / 0.96" (12th fret)
• Shape: Medium D
• Fingerboard: Indian Rosewood, radius 305 mm / 12"
• Inlays: Cream dots
• Frets: 22 Jumbo 2.8 x 1.0 mm
• Scale length: 648 mm / 25.5"
• Trussrod: Steel dual-action
• Headstock: Black

Body

• Type: Solid American Alder with sound chambers
• Top: Laminated Maple
• Dimensions: 47 x 34 cm / 18.5" x 13.35"
• Height (sides): 4.5 cm / 1.8"
• Binding:Cream with 3-layer purfling
• Pickguard: Cream
• Finish: PUR lacquer.

Hardware

• Tuners: Duesenberg Z-Tuners (6-string) / knurled buttons (12-string)
• Bridge: Duesenberg Steel Saddle Bridge
• Tailpiece: aluminum stop tailpiece (12-string)
• Tremolo: Duesenberg Diamond Deluxe Tremola (6-string)
• Strap pins: Duesenberg Standard (Straplock compatible)
• Hardware color: Nickel
• Strings (6-string): Duesenberg Custom 10/50 (010-013-017-028-042-050)
• Strings (12-string): Duesenberg Custom 12-String (010/010-013/013-017/008-026/011-036/017-046/026)

Electrics

• Pickup (neck): Duesenberg Domino P90
• Pickup (bridge): Duesenberg GrandVintage Humbucker
• Wiring: 1 Volume, 1 Tone, 3-Way Pickup SelectorSpecial ModelsDDC-12:12-String

Accessories

• Bag: Duesenberg Custom Line Bag (included)
• Case: Duesenberg Custom Line Case for Double Cat (available separately)
• Tools: All required allen keys (included)
