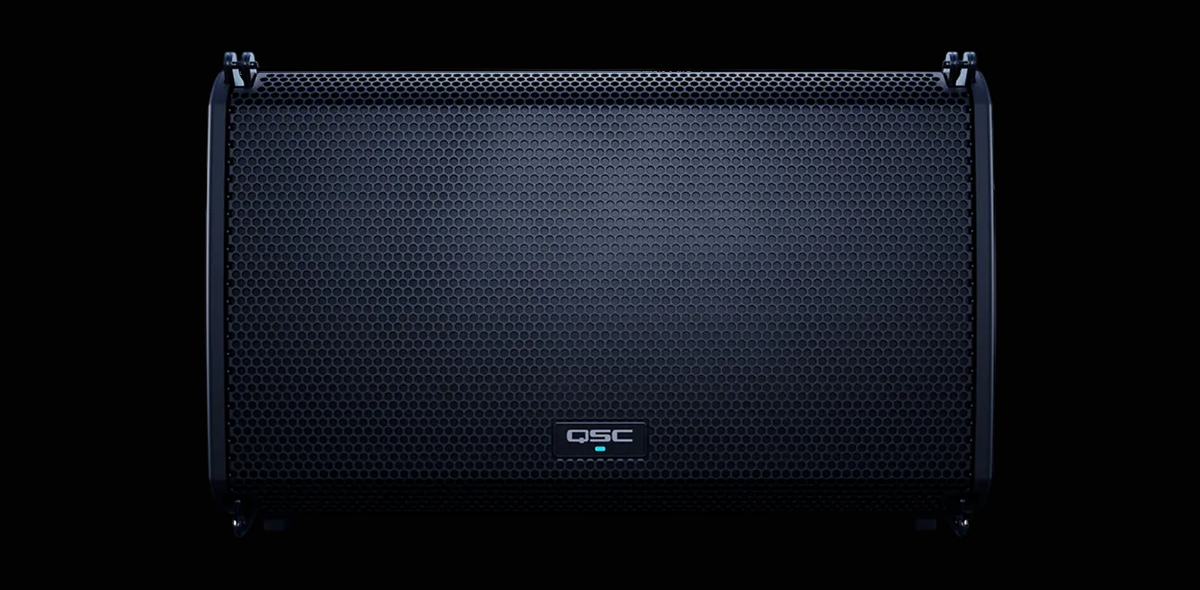

QSC LA112 Intelligent Active Line Array Loudspeaker

The LA112 is a next-generation intelligent active line array loudspeaker — engineered for professionals who demand extraordinary audio performance without compromise. A brilliant fusion of leading-edge innovation and refined engineering, the LA112 delivers exceptional clarity, impact, and consistency whether you're running a solo gig, a corporate AV production, or a permanent fixed installation.

Powered by advanced system intelligence and premium internal components, the LA112 adapts effortlessly to your environment. Its intuitive splay angle adjustment and built-in array optimization take the guesswork out of deployment, getting you to the perfect sound faster than ever. Native Dante networking ensures seamless integration into today's most demanding digital audio ecosystems.

Designed for real-world versatility, the LA112 supports multiple deployment configurations:

• Flown — up to six units with the dedicated array frame
• Ground-stacked — up to three LA112 over a single LS118 subwoofer
• Pole-mounted — up to two LA112 on a standard loudspeaker stand

Daisy-chain connectivity for analog audio, digital audio, and AC power (PowerCON TRUE1) keeps cable runs clean and setups fast — from plug-and-play portable rigs to complex networked productions.

KEY FEATURES:

• Purpose-designed neodymium 12-inch woofer and dual 1.75-inch HF compression drivers — 136 dB max. peak SPL
• 2400 W peak Class D amplifier with Power Factor Correction and extremely low AC consumption
• QSC LEAF™ waveguide for defined, uniform 90° H x 15° V coverage and exceptional throw

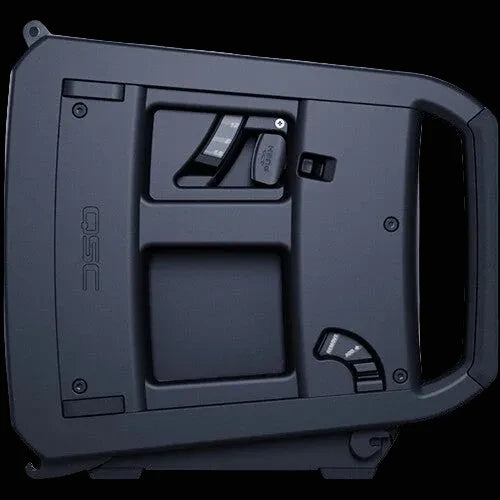

• QSC RapidDeploy™ rigging — short, medium, and long-throw options, tool-free and hardware-free
• QSC AWARE™ system intelligence for instant setup feedback via RUI or QSC SysNav™ App
• QSC SysNav™ App with AIM prediction tool for full array design, control, and monitoring
• Acoustic Linear Phase (ALP) design for complementary coherence across multi-loudspeaker systems
• Dante® digital audio-over-IP and Q-SYS Ecosystem integration via Q-SYS Inventory Extensions
• 6-year warranty when registered within 30 days of purchase

SPECIFICATIONS:

• Configuration: Two-way active line array loudspeaker
• LF Transducer: 305 mm (12-inch) cone
• HF Transducer: 2x 44 mm (1.75-inch) compression drivers with Polyimide diaphragm
• Frequency Response (-6 dB): 58 Hz – 20 kHz
• Frequency Range (-10 dB): 53 Hz – 20 kHz
• Nominal Coverage: 90° H x 15° V
• Max SPL (peak): 136 dB @ 1 m
• Amplifier: Class D — LF 1600 W / HF 800 W (peak)
• Cooling: Convection
• Display: 61 mm (2.4-inch) full color, 240 x 320 px

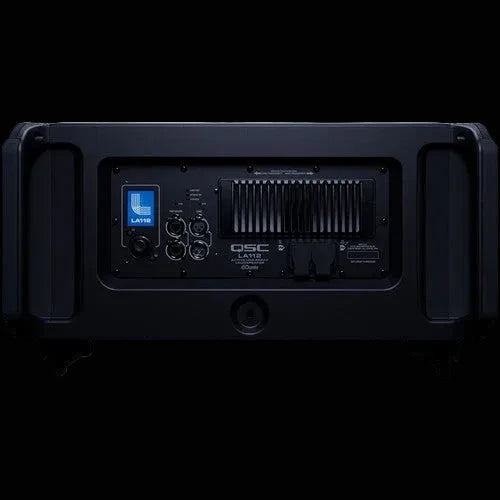

• Connectors: XLR Analog In/Thru, 2x RJ45 EtherCON (Dante® / SysNav™), 2x PowerCON TRUE1
• AC Power Input: Universal 100–240 VAC, 50–60 Hz
• Enclosure: Impact-resistant ABS, Black (RAL 9011)
• Grille: 16 GA powder-coated steel
• Dimensions (H x W x D): 392 x 630 x 417 mm / 15.4 x 24.8 x 16.4 in
• Net Weight: 21.4 kg (47.2 lb)
• Shipping Weight: 26.2 kg (57.7 lb)
• Certifications: UL, CE, FCC Class A
• Supplied Accessories: PowerCON TRUE1 power cable
